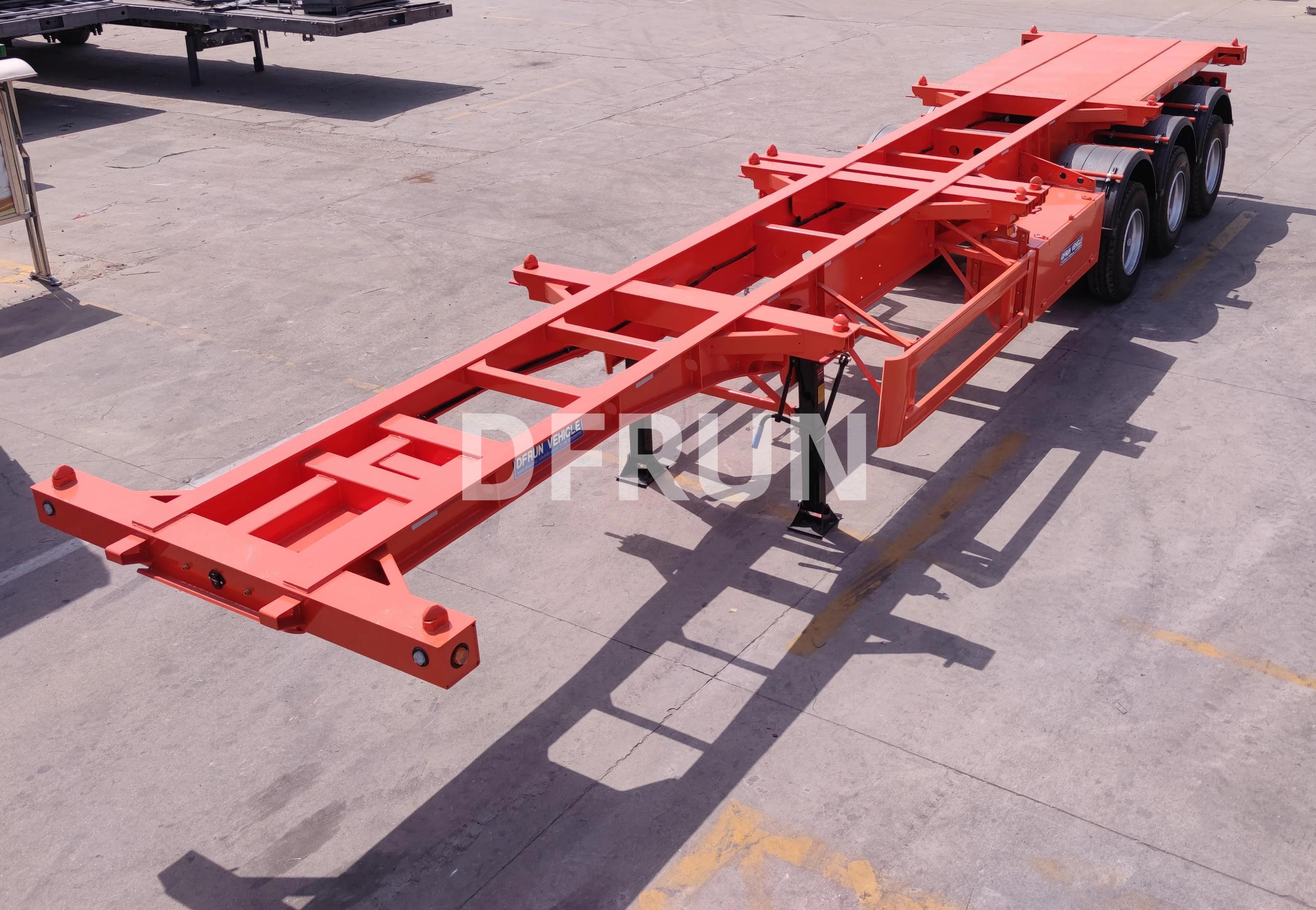

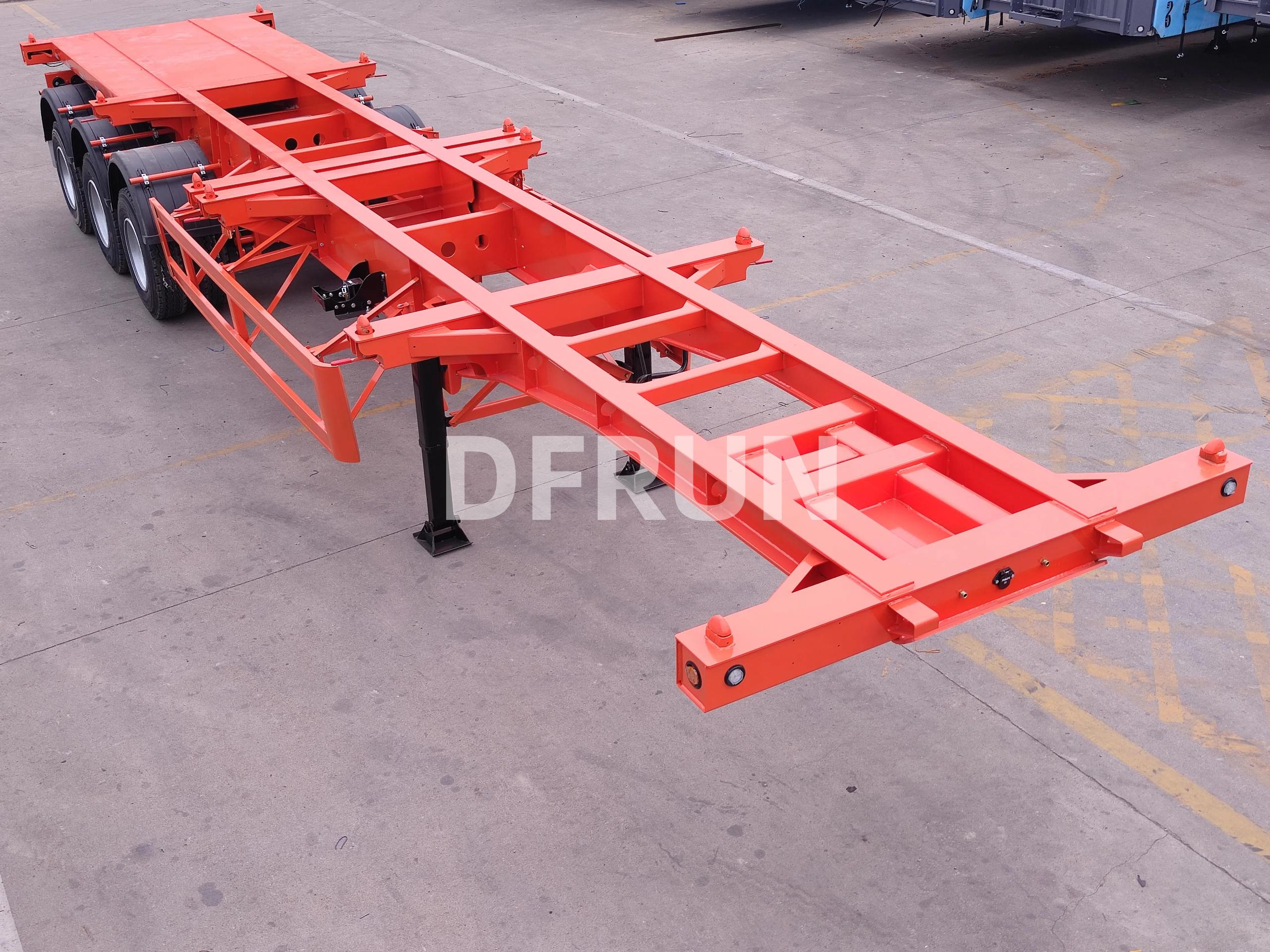

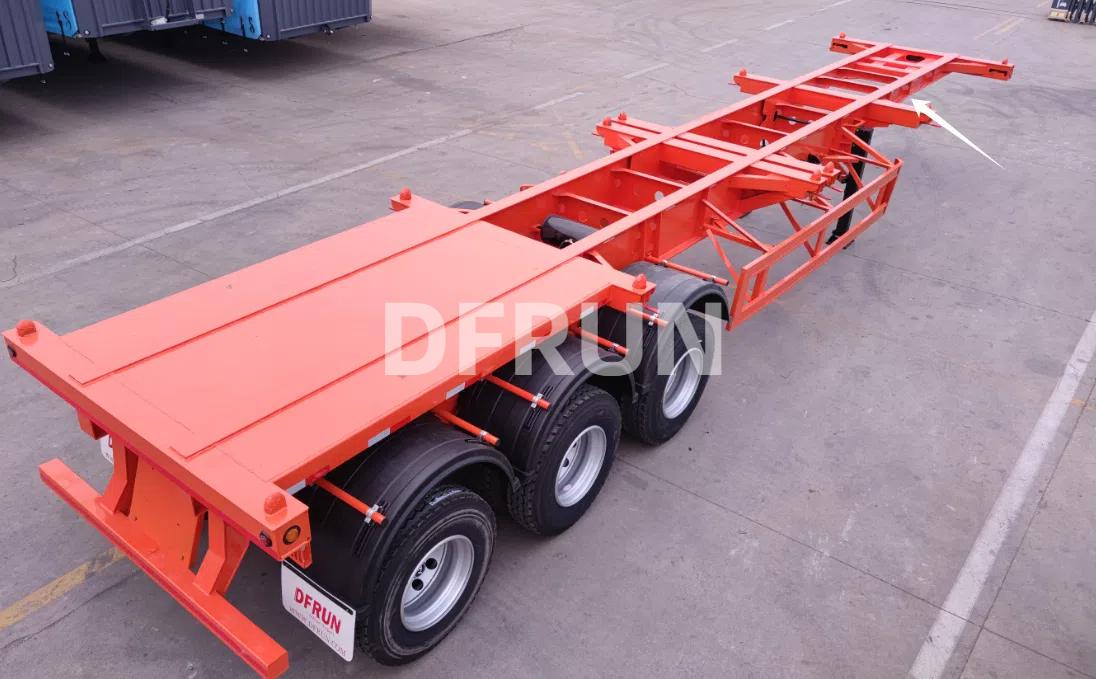

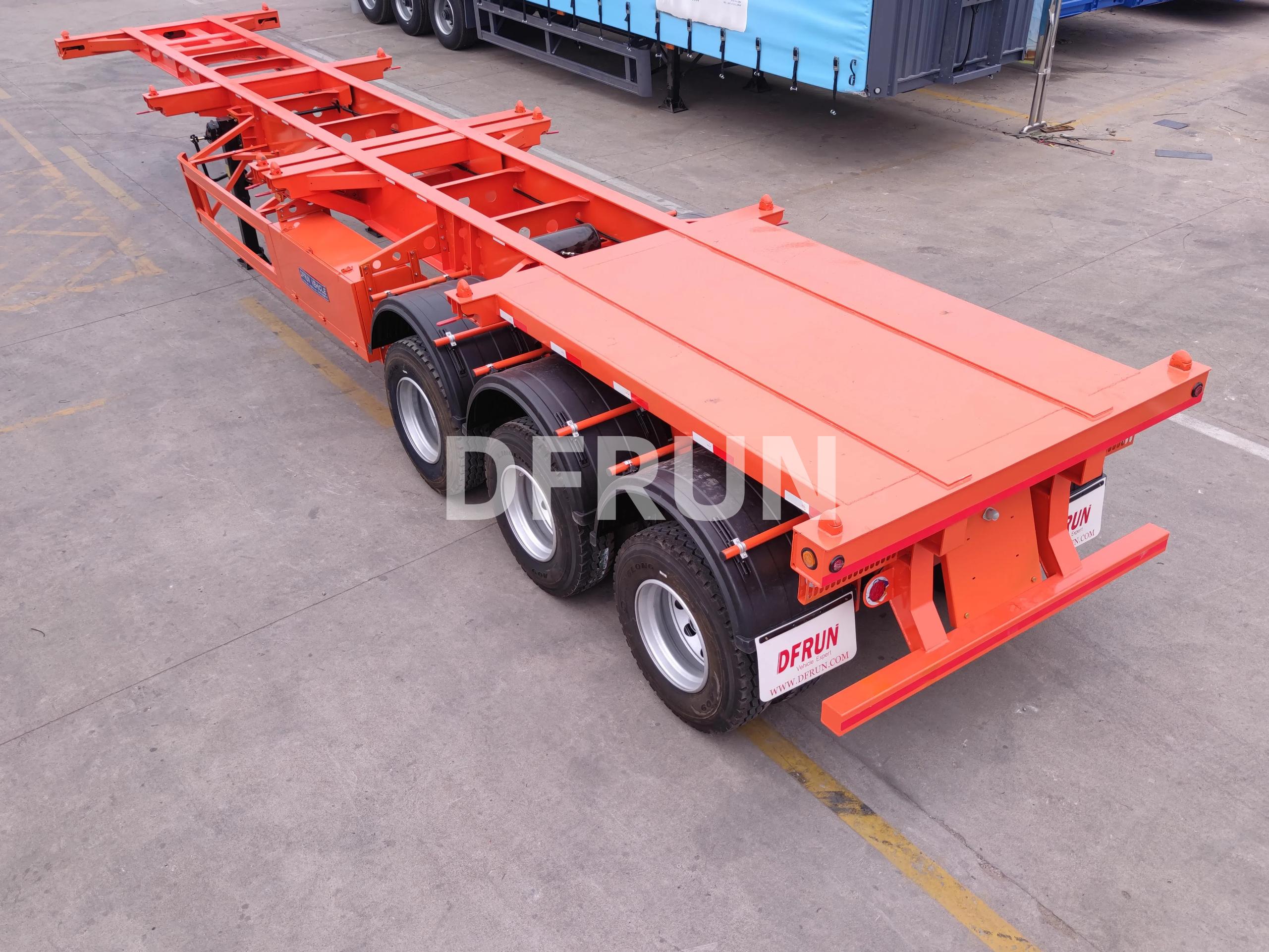

3 axles 40ft skeletal trailer will be shipped to Tanzania

3 axles 40ft skeletal trailer will be shipped to Tanzania

Our customer from Tanzania saw the vehicles with our logo at the Dar es Salaam Port, contacted us and ordered 6 skeletal trailers.

The main function of the skeletal trailer is to transport containers:

Mainly used to transport 20ft or 40ft standard shipping containers (ISO certified), suitable for port, rail and road multimodal transport. Equipped with Twist Locks to ensure that the container is firmly fixed.

The main advantages of skeletal trailers:

1. Efficient container transportation

✅ Standardized design: Perfect match for 40ft containers, improving loading and unloading efficiency.

✅ Quick locking: Equipped with Twist Locks, container loading and unloading only takes a few minutes.

✅ Seamless multimodal transport: Suitable for port, railway and road transportation, reducing reloading time.

2. Lightweight & high load-bearing

✅ Light weight (5-7 tons), more fuel-efficient than traditional flatbed trailers, reducing operating costs.

✅ High load-to-weight ratio (30-60 tons), in line with national highway weight limit regulations.

3. Flexible adaptation to a variety of goods

✅ Extension beams can be installed for transporting extra-wide goods.

✅ Can be converted into low-bed trailers to meet the transportation needs of construction machinery.

4. Durable & low maintenance

✅ High-strength steel frame, corrosion-resistant, fatigue-resistant, and long service life.

✅ Low maintenance design: No complicated cargo box structure, low failure rate and low maintenance cost.

Tare Weight: 5800kg

Load Weight: 50000kg

Overall Dimensions: 12200x2500x1480 mm

Main Beam Material: Q355B steel

Main Beam Height: 500mm

Upper Plate: 14mm

Lower Plate: 16mm

Web Plate: 8mm

Axle: 3*13Ton

Suspension: Leaf spring

Tyre: 12R22.5 12+1pcs

Landing Gear: 28Ton

Brake Chamber: Six double chambers

Lamps: A full set of LED lights

Twist Lock: 12 pcs
